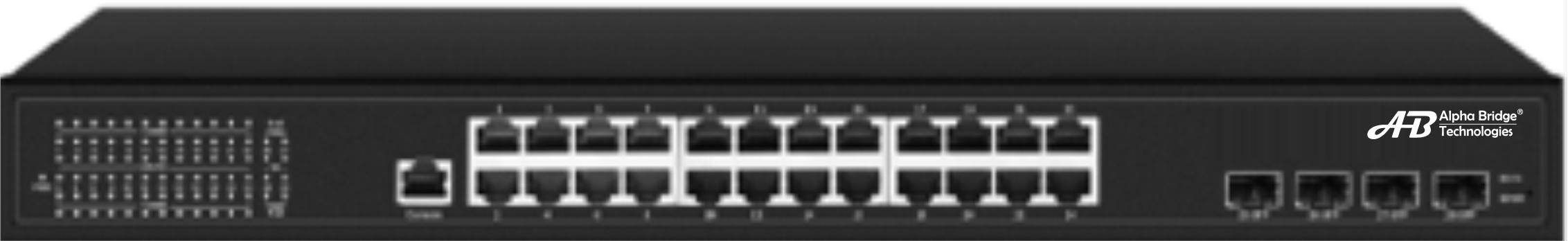

ALPHA BRIDGE- LAYER 3-Lite Switch (AS200/28/XP-2AC)
Product Overview
AS200/28/XP-2AC is an Alpha Bridge-developed multigigabit Ethernet switch oriented for the next generation IP metropolitan area network, large campus network, and enterprise network.
AS200/28/XP series adopts the cutting-edge hardware architecture and is equipped with the ABOS operating system with Alpha Bridge independent intellectual property rights. On the basis of providing high-performance L2/L3/L4 wire-speed switching services, AS200/28/XP-2AC further integrates various network services such as IPv6 and network security.
Combined with multiple high-reliability technologies such as uninterrupted upgrades, uninterrupted forwarding, graceful restart, and redundancy protection, AS200/28/XP-2AC ensures the long-term stable communication capability of the network.
Product Characteristics
AS200/28/XP-2AC 1U pizza-box switch realizes the ultra-high port density of 24-Port 1G RJ45 Port and 4-Port 1G/10G SFP+. Equipped with high-performance ASIC switch chips, the Alpha Bridge series can meet the application requirements of various complex scenarios.
Doubled performance: The virtualized system makes full use of every link between physical devices avoiding the link congestion of the traditional networking model Spanning Tree Protocol, making the best use of devices, doubling the performance, and protecting the original link investment to the greatest extent.
High Reliability: Based on advanced distributed processing technology, the efficient cross-physical device link aggregation function separates the logical control plane, service control plane and service data plane, providing uninterrupted Layer 3 routing and forwarding and avoiding business interruption caused by the single failure.
Easy management: The entire virtual system realizes unified management of a single IP, and physical devices are visible to users, which simplifies the management of network devices and network topology, greatly improves operation efficiency, and effectively reduces operation and maintenance costs.
Based on Hitless Protection System (HPS), the key components of the AS200/28/XP Series, such as power supply modules, are redundant backup and hot- swappable, which supports seamless switchover in case of failure without manual intervention.
AS200/28/XP-2AC supports STP/RSTP/MSTP, VRRP, ring network protection, dual uplink active/standby link protection, LACP and other simple and efficient redundancy protection mechanisms.
AS200/28/XP-2AC supports In-Service Software Upgrade (ISSU), ensuring the unremitting data forwarding during system upgrade.
The ultra-high-precision BFD mechanism, through linkage with Layer 2 and Layer 3 protocols, realizes millisecond-level fault detection and service recovery, which greatly improves the reliability of the network system.
Perfect Ethernet OAM mechanism, supporting 802.3ah and 802.1ag, realizes rapid detection and location of faults through real-time monitoring of network operation status.
The high-reliability hardware and software of the AS200/28/XP-2AC meet the fault recovery time requirement of 50ms for carrier-level services and truly achieve the high reliability (99.999%) of carrier- class core devices.
The Alpha Bridge AS200/28/XP-2AC supports innovative AB Virtual Switch System (ABVSS), which can virtualize multiple physical devices into one logical device with unparalleled performance, reliability, and management compared to stand-alone physical devices.
Perfect Layer 2 and Layer 3 multicast routing protocols meet the access requirements of IPTV, multi-terminal high-definition video surveillance and video conferencing.
Complete Layer 3 routing protocols and large routing table capacity meet the needs of various network interconnection and can built up ultra-large campus network, enterprise network and industry private network.
Supports IPv6 multicast features such as MLD, MLD Snooping, IPv6 static routing, IPv6 Layer 3 routing protocols such as RIPng, OSPFv3, BGP4+, providing complete IPv6 Layer 2 and Layer 3 solutions.
Supports a wealth of IPv4 to IPv6 transition technologies, including: IPv6 manual tunnel, automatic tunnel, 6to4 tunnel, and ISATAP tunnel to ensure the smooth transition from IPv4 network to IPv6 network.
Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP- related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions.
Perfect security authentication mechanisms: EEE 802.1x, Radius and TACACS+.
Enhanced service security mechanism: Supports clear text or MD5 authentication of related routing protocols, and Unicast Reverse Path Forwarding (uRPF), which can effectively control illegal services; supports in-depth detection and filtering of control packets and data packets, thereby effectively isolating illegal data packets and improving the security of the network system.
Intelligent power management system: AS200/28/XP-2AC adopt advanced power system architecture design to achieve efficient power conversion, unique power monitoring, slow start function, real-time monitoring of the running status, intelligent adjustment, and deep energy saving.
Intelligent fan management system: Intelligent fan design supports automatic speed regulation, effectively reduce the speed, reduces noise, and prolongs the service life of the fan.
Supports energy-efficient Ethernet function and complies with the international standard IEEE 802.3azEEE, effectively reducing energy consumption.
Product Specifications
| Model | AS200/28/XP-2AC |
| Product Name | 10G Uplink 4SFP+24GE L3 Managed POE Switch |
| Fixed Port | 24*10/100/1000Base-TX PoE port (Data/Power) 4*100/1000/2500/10000M SFP |
| PoE Ports | 1-2 port supports IEEE802.3af/at/poe++/bt, max 90W/port PoE out 3-24 port supports IEEE802.3af/at, max 30W/port, PoE out |
| Console port | 1*console port |
| Reset Key | 1 |
| PoE Pin | af/at/bt: 12+ 45+; 36-78- af/at: 12+ 36- |
| PoE Bridge | max 400W |
| CPU | MIPS-34Kc 800GHz |
| DDR | 4G DDR3 |
| FLASH | 512MBytes |
| RAM | 512MBytes |
| Bandwidth | 512Gbps |
| Packet Forwarding | 95.23Mpps |
| MAC | 16K |
| Buffer | 12Mbit SRAM Packet Buffer |
| Jumbo Frame | Jumbo frame up to 12KB |
| VLAN Address | 4K |
| Link Aggregation | Supports 128 trunk groups with up to 8 members per group |
| L3 Routing | IPV4 supports 6K; IPV6 supports 2K; |
| QoS Queue | 8 |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
| LED Indicator | PWR:Power LED SYS:System LED 1-24:10/100、1000M Network connection indicator 25-28:10G SFP connection indicator |
| Power | Built-in power AC：100-240Vac 50-60Hz 5A max 400W |
| Operating Temperature/Humidity | -10～+55°C; 5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C; 5%～95% RH Non coagulation |
| Product /Packing Size (L*W*H) | 440mm*290mm*45mm 515mm*375mm*95mm |
| N.W/G. W (kg) | 3.5kg/4.2kg |
| Lightning Protection level | 6KV 8/20us; IP30 |
| Installation | Rack-mount (optional machine hanger spare parts) |
| Certificate | CE-EMC EN55032; CE-LVD EN62368; FCC Part 15 Class B; RoHS; |
| Warranty | Whole device for 1 year (Accessories not included) |
Software specifications
| PORT | |
| Port Shutdown | Support |
| Port Speed | Support auto negotiates, full-10000, full-2500, full-1000, full-100, half-100 |
| Flow Control | support full-duplex IEEE 802.3x, half-duplex back pressure |
| Storm Control | Supports rate limit for broadcast, multicast, and DLF packets |
| Storm Constrain | Support the detection of broadcast packets, multicast packets, or unicast packets on the port, shutdown the port if the rate is over the threshold. |
| Port Mirror | Support |
| Port Rate Limit | Support port ingress and egress rate limit |
| Link Aggregation | Support manual link aggregation Support LACP dynamic link aggregation Supports up to 32 aggregation groups, each group up to 8 ports Support source MAC, destination MAC, source destination MAC, source IP, destination IP, source destination IP routing strategy |
| Port Isolate | Support |
| Jumbo Frame | Support up to 12KB packet |
| Redundant Port | Support |
| The DDM of fiber ports | Support |
| MAC | |
| MAC Table Capacity | 16K |
| MAC Table Management | Support |
| Forwarding mode | Support IVL forwarding mode |
| Static MAC Address | Support |
| MAC Address Binding | Support |
| MAC Address Filtering | Support |
| MAC Learning Control | Control the MAC learning based on port |
| VLAN | |
| Number of VLANs | 4K |
| 802.1q-based VLAN | Support |
| MAC-based VLAN | Support |
| IP-based VLAN | Support |
| Protocol-based VLAN | Support |
| PVLAN | Support |
| Voice VLAN | Support |
| VLAN Mapping | Support 1:1 mapping |
| QinQ | Support basic QinQ Support flexible QinQ |
| GVRP | Support |
| Reliability | |
| Spanning Tree Protocol | Support STP/RSTP/MSTP |
| Port Loop Detection | Support |
| EAPS | Support RFC3619 |
| ERPS | Support G.8032/Y.1344 |
| LLDP | Support LLDP & LLDP-MED |
| UDLD | Fully compatible with CISCO's UDLD protocol |
| VLLP (VRRP Layer-2 Loop Protection) | Support, only used with VRRP |
| L3 | |
| ARP | Support static and dynamic ARP |
| Static Route | Support static route based on IPv4 and IPv6 |
| VLAN Interface | Support 32 VLAN interfaces |
| RIP | Support RIP v1/v2 & IPv6 RIPng |
| OSPF | Support OSPFv2 & IPv6 OSPFv3 |
| BGP | Support BGP4 & IPv6 BGP4+ |
| Policy Route | Support |
| VRRP | Support |
| Multicast | |
| Static Multicast MAC Address | Support |
| IGMP SNOOPING | Support IGMP SNOOPING v1/v2/v3 Support IGMP Querier Support IGMP SNOOPING Filter |
| MVR | Support |
| GMRP | Support |
| IGMP | Support IGMP v1/v2/v3 |
| PIM-SM | Support |
| ACL | |
| Standard IP-based ACL | Support |
| Extended IP based ACL | Support |
| MAC IP-based ACL | Support |
| MAC ARP-based ACL | Support |
| ACL Port Filtering | Support |
| Time-based ACL | Support |
| QoS | |
| Port Queue Number | 8 |
| Port Queue Scheduling Mode | Support WRR, WFQ, SP |
| Port-based Classification | Support |
| 802.1p-based Classification | Support |
| DSCP-based Classification | Support |
| ACL-based Classification | Support |
| QoS Policy | Support packets mapping to queue Support COS or DSCP Remarking Support rate limits of data flow Support data flow statistics Support mirroring of data flow |
| DHCP | |
| DHCP Client | Support |
| DHCP Snooping | Support |
| DHCP Relay | Support |
| DHCP Server | Support |
| DHCP option 82 | Support |
| Management | |
| CLI Management | Support Console, Telnet and SSH Support multiple TELNET connections based on IPv4 and IPv6 Support multiple SSH connections based on IPv4 and IPv6 |
| WEB Management | Support HTTP based on IPv4 and IPv6 Support HTTPS based on IPv4 and IPv6 |
| SNMP Management | Support SNMP v1, v2c, v3 Support SNMP TRAP Support lots of standard and private MIBs Support SNMP and TRAP based on IPv4 and IPv6 |
| User Management | Support multiple user management |
| TACACS+ | support switch authentication via TACACS+ server remote username and password Support password encryption in PAP and CHAP mode Support TACACS+ server to authorize the switch’s commands Support TACACS+ based on IPv4 and IPv6 |
| Log Management | Support local log management Support SYSLOG |
| RMON | Support RMON 1, 2, 3 and 9 groups |
| Cluster Management | Support NDP Support NTDP Support manual and automatic joining of cluster groups Support cluster unified management |
| Configuration File | Support uploading and downloading configuration file Support TFTP transmission based IPv4 and IPv6 |
| Upgrade software | Support TFTP transmission based IPv4 and IPv6 |
| Clock Management | Support local clock management Support SNTP |
| Security | |
| Switch Management Security | Support enabling and disabling TELNET, SSH, HTTP, HTTPS and SNMP services Support TELNET, SSH, HTTP, HTTPS and SNMP services to bind to standard IP ACLs Support for limiting the number of TELNET and SSH connections |
| CPU Protection | The switch's own security protection prevents large data streams from attacking the switch itself. |
| AAA | Support 802.1x Support RADIUS Supports authentication, authorization, and accounting through RADIUS server Support port-based and MAC-based 802.1x Support 802.1x guest VLAN |
| IP MAC Binding | Support static configuration of IP, MAC and port binding |
| DHCP SNOOPING | Support dynamic ARP binding to prevent ARP spoofing Support dynamic IP, MAC and port binding Support fixed port to connect to DHCP server to prevent private connection to DHCP server |
| Prevent ARP Spoofing | Support manually configuring MAC ARP-based ACL rules to prevent ARP spoofing. Support the DHCP SNOOPING function. During the process of obtaining an IP address by DHCP, the switch dynamically binds ARP to the port to prevent ARP spoofing. |
| IPv6 | |
| IPv4/IPv6 Dual Protocol Stack | Support |
| IPv6 Address | Support manual address configuration and stateless address auto-configuration |
| IPv6 Neighbor Discovery | Support |
| ICMPv6 | Support |
| IPv6 Path MTU Discovery | Support |
| Debugging | |
| PING | Support |
| PING6 | Support |
| TRACEROUTE | Support |
| TELNET Client | Support TELNET client based IPv4 and IPv6 |
| SSH Client | Support SSH client based IPv4 and IPv6 |
Ordering Information
| Item | Description |
| AS200/28/XP-2AC | 24-Port RJ45 PoE+ Ports, 4-Port 10G SFP+ L3 Managed Switch (built-in Dual AC-220V power supply; with cooling fan, 1U, standard 19-inch rack-mounted installation) |
